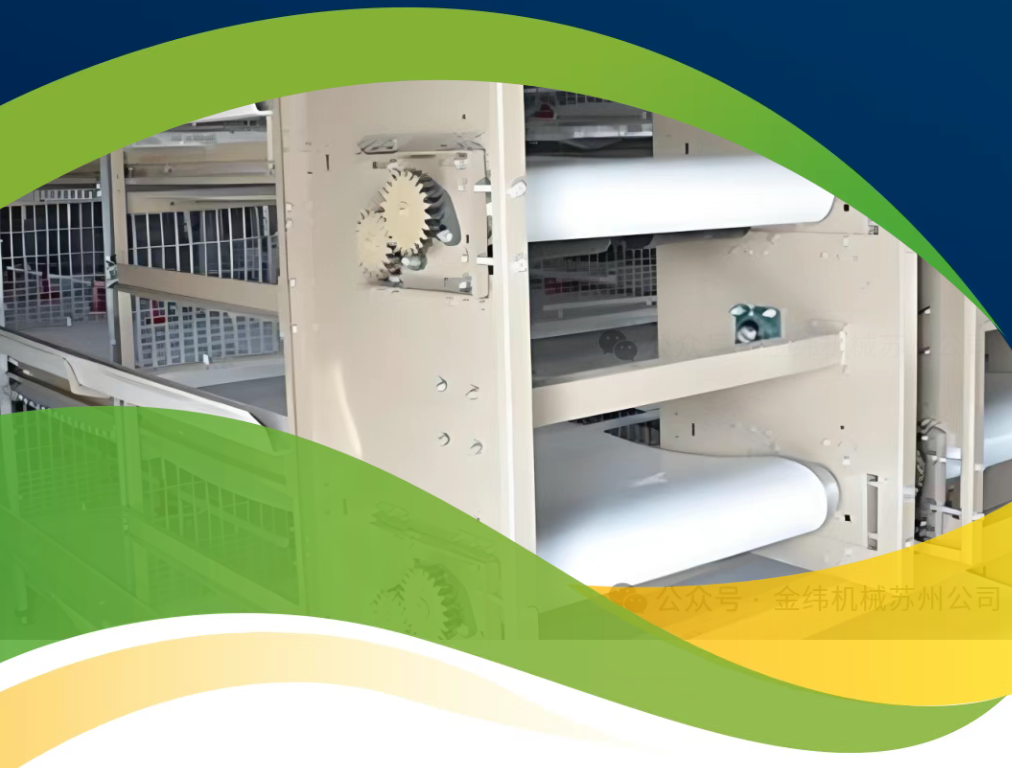

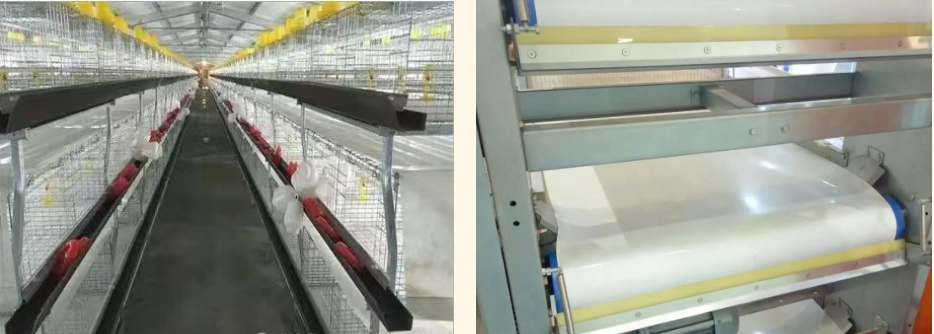

在規?；B(yǎng)雞場的日常運營中，雞糞清理是一項至關重要卻又頗具挑戰的工作。傳統的清糞方式不僅效率低下，還可能對養殖環境造成污染，影響雞群的健康生長。而PP雞糞帶擠出生產線的出現，為這一難題提供了完美的解決方案。帶大家深入了解一下這款高效清糞神器。

In the daily operation of large-scale chicken farms, the removal of chicken manure is a crucial yet challenging task. The traditional method of manure removal is not only inefficient but also may cause pollution to the breeding environment, affecting the healthy growth of the chicken flock. The emergence of the PP chicken manure belt production line has provided a perfect solution to this problem. Now let's take a closer look at this highly efficient manure removal device.

2.擠出模具：是決定輸送帶尺寸的關鍵部件。

Mold: the key part of conveyor belt size

根據不同的生產需求，可定制各種規格的模具。模具內部型腔采用流體分析軟件進行物流模擬分析和優化，以此獲得的流道參數進行的加工處理。模唇采用推拉式調節，保證了輸送帶的尺寸精度，使其能夠緊密貼合雞籠，厚薄均勻一致在輸送過程中不跑偏，實現高效清糞。

We can design various specification of mold accoding to customers’ requirements.The internal cavity of the mold is processed by using fluid analysis software for logistics simulation analysis and optimization to obtain the best flow channel parameters. The mold lip adopts a push-pull adjustment, ensuring the dimensional accuracy of the belt, allowing it to closely fit the chicken coop, with uniform thickness and no deviation during the conveying process, thus achieving efficient manure removal.

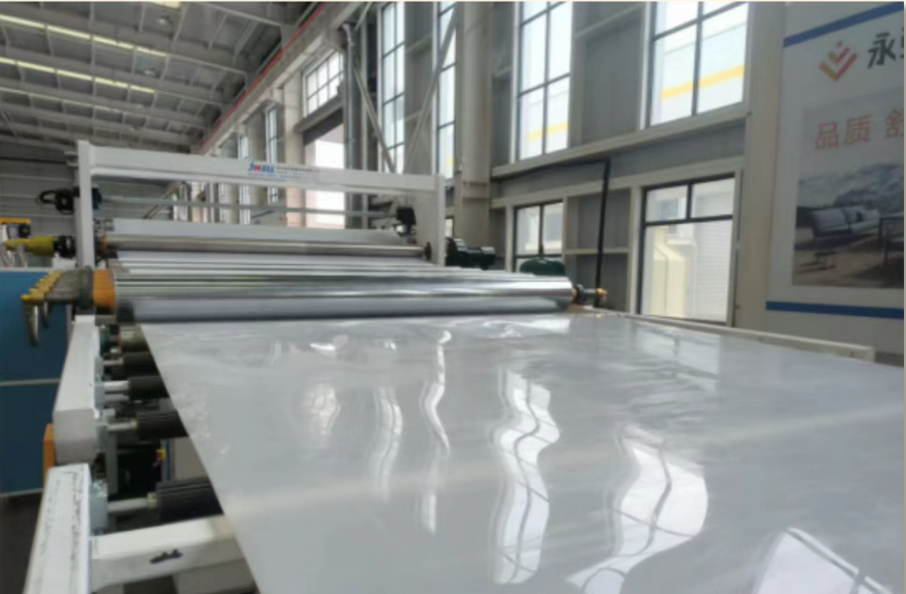

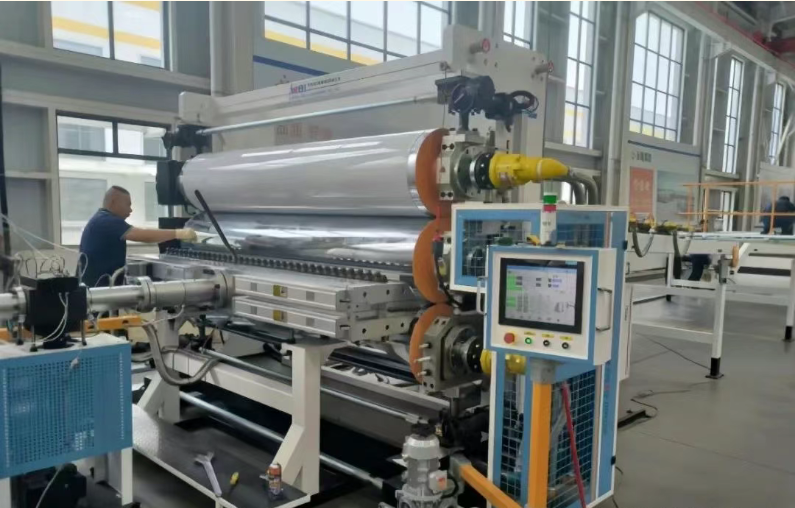

3.三輥壓光機：對擠出的熔體進行壓光、定型和冷卻。

Three roller calender: The extruded material is calendered, shaped and cooled.

三個輥筒的溫度和壓力可精確控制，輥筒壓合力對制品熔體進行強力壓延成型，使得成品卷材密實度高，產品表面平整，放卷后伏貼順暢，檢測數據優，尺寸穩定。

The temperature and pressure of the three rollers can be precisely controlled. The super strong pressure force of the rollers strongly calenders and forms the product, making the finished roll products have high density, a smooth surface, smooth laying after unwinding, excellent test data and stable size.

4.  冷卻輥組及托架：為輸送帶提供了持續的冷卻空間。

Cooling roller unit and bracket: They provide consistent cooling for belt.

制品在離開三輥壓光機后，起到充分冷卻定型，防止變形的作用。它經過水冷和室溫自然應力釋放環節，確保輸送帶的平整度及尺寸穩定性，滿足后續加工和使用要求。

After the products leave the calender, they are fully cooled and shaped to prevent deformation.This unit undergoes water cooling and natural stress release at room temperature to ensure the flatness and dimensional stability of the belt, meeting the requirements for subsequent processing and use.

5.  牽引機：負責將冷卻后的輸送帶平穩地牽引向前。

The haul-off unit: It is responsible forsmoothly pulling the cooled conveyor belt forward.

它通過調節人機操作界面中的牽引比例來控制白糞帶的牽引速度和張力，使其在整個生產過程中保持穩定，避免出現拉伸、斷裂等問題。

It controls the speed and tension of manure belt through adjusting traction ratio in the human machine operation interface, keeping stable and avoiding problems like stretching and breakage during the whole production.

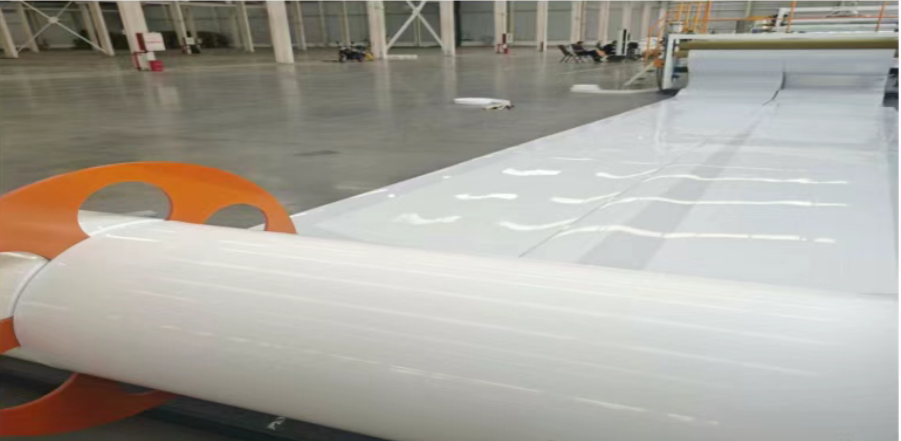

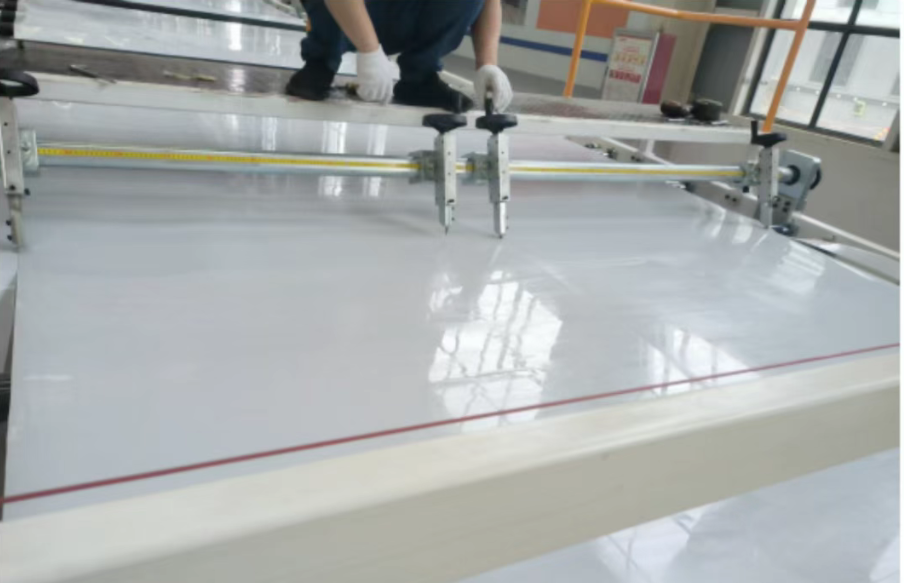

6. 收卷機：收卷機將切斷后的輸送帶整齊地卷繞成卷，便于儲存和運輸。

Winder: It neatly winds the cut conveyor belt into rolls, which is convenient for storage and transportation.

它具備張力控制收卷的功能，保證收卷的輸送帶整齊、無松弛和褶皺現象，方便養殖場隨時取用。

The function of tension control winding ensures the neat rolls of belt with no sagging or wrinkling, easy to use in farms.

7.生產線的協同運作

The collaborative operation of the production line

在整個生產過程中，自動化控制系統實時監控各個部件的運行狀態，精確調節溫度、速度、壓力等參數，確保生產線的穩定運行和確保產品尺寸、厚度均勻質量的一致性。這種高度自動化的生產模式，提高了生產效率。

During the whole production, the operation of each parts are monitored by automatic control system, precisely adjusting temperature,speed and pressure which ensures the stable operation of line,products size and uniform thickness. This highly automatic production mode impoves the efficiency to a great extent.
